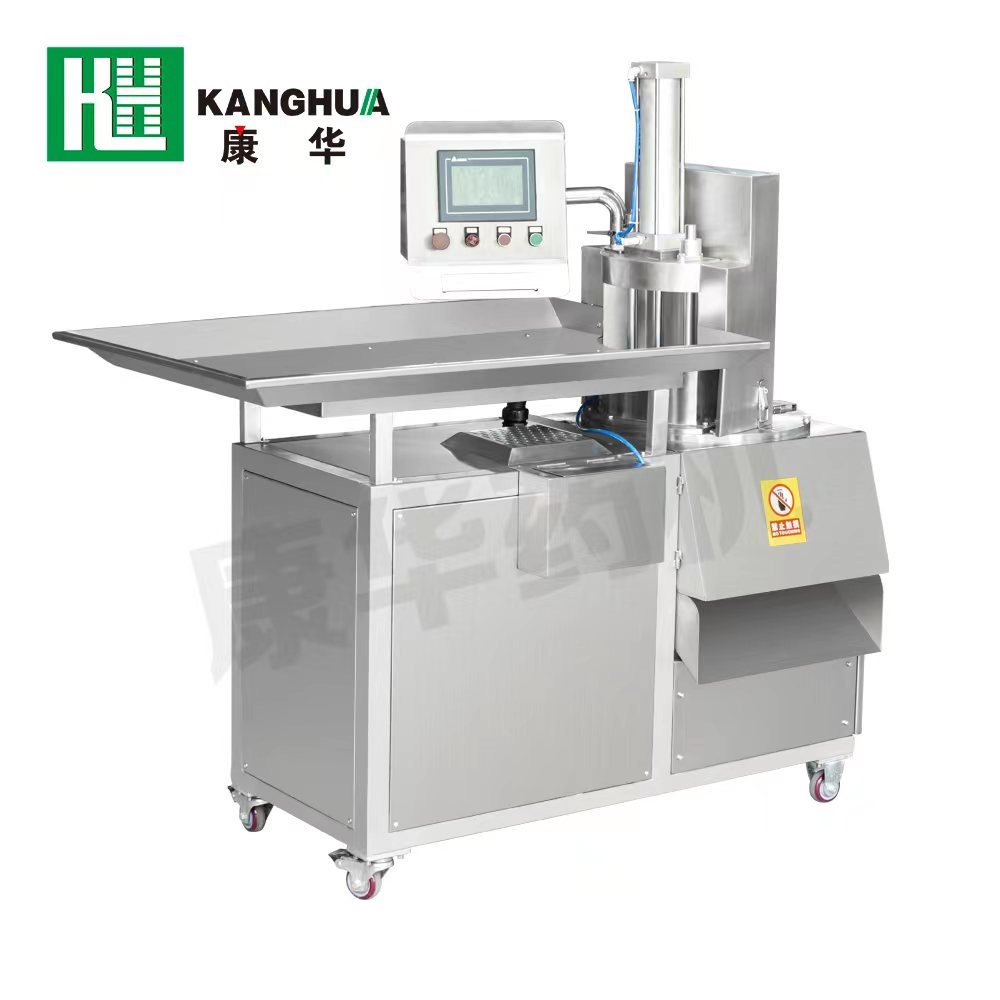

SXZ-460 CNC Intelligent Herbal Slicer
Product Video
Detail
Primary Application
Designed for slicing processing of fruit-type/root-tuber medicinal herbs and other agricultural by-products.
Key Features
Continuous operation with uniform slice morphology
High precision & minimal material loss
User-friendly maintenance & non-contaminating design
GMP compliance
Working Principle
Material loading into designated feed hopper
Pneumatic cylinder automatic compression

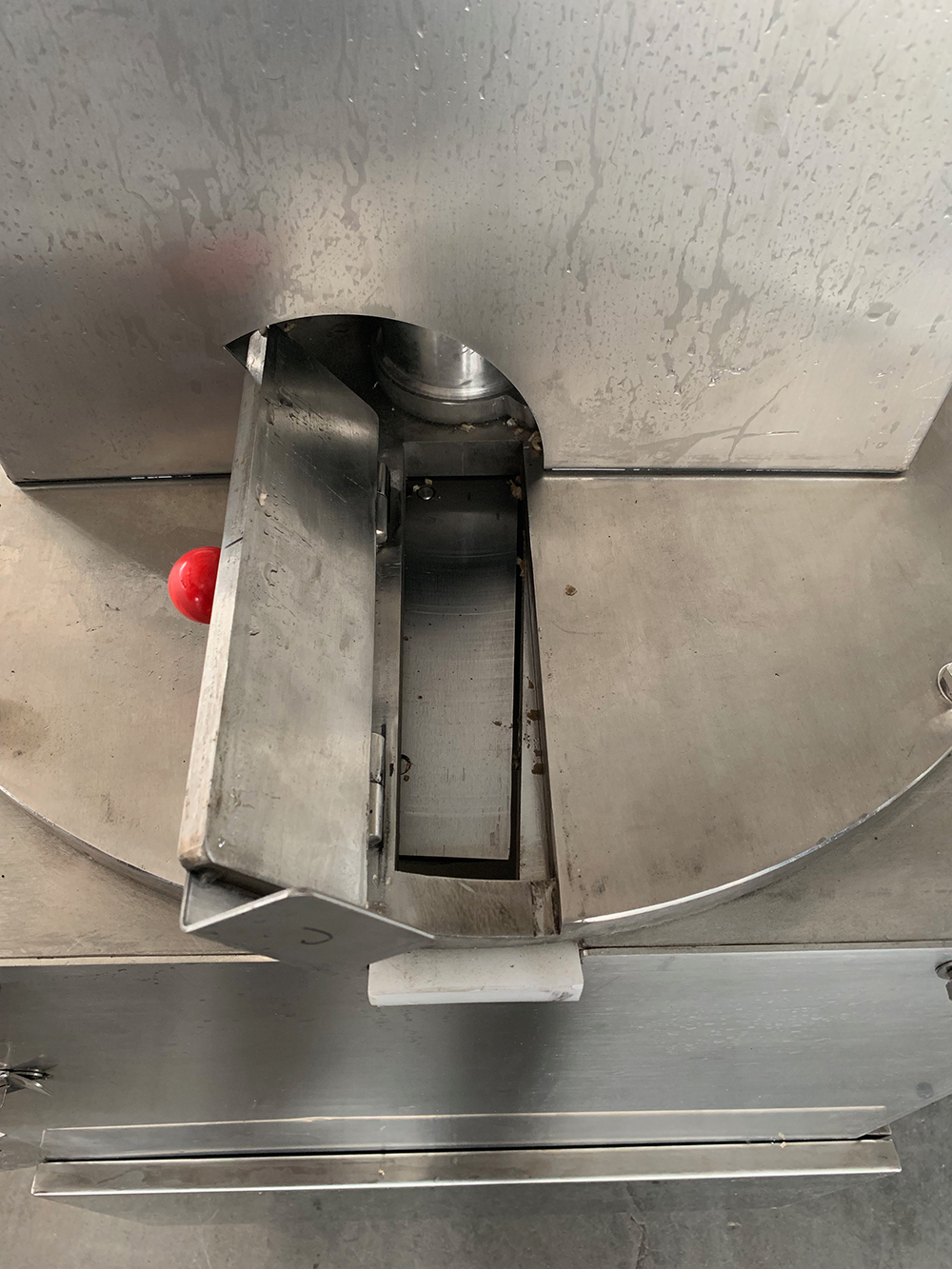

Fixed blades on rotary disc face
Servo motor-controlled gap adjustment between disc & blades
Rotary motion generates consistent slices
Integrated water spray system prevents blade adhesion
Distinctive Advantages
PLC touchscreen interface for real-time servo motor control
Precise gap adjustment ensuring uniform slice thickness
Intuitive thickness calibration system
Main technical parameters
|
Model |
Capacity (kg/h) |
Length of sections (mm) |
Power (kw) |
Cutting knife frequency（times /min） |
Dimension (mm) |
Weight (kg) |
|
SXZ-460 |
50-200 |
0.5-5 |
4.75 |
720 |
1540×810×1580 |
260 |
